GEXD Targeting a Range

The following example demonstrates targeting a range as the Target Cell/Range/Table value:

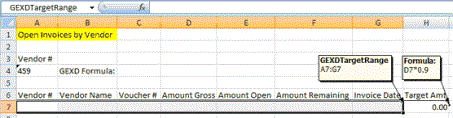

Cell A1: identifies the user-defined report name (Open Invoices by Vendor).
Cell A3: the user-assigned literal, indicating what the parameter value represents (Vendor #).
Cell A4: identifies the parameter value needed to execute the GEXD (459).
Cell B4: the user-assigned literal, indicating what type of formula will be used (GEXD Formula).
Cell C4: the location where the GEXD formula will reside.
Cells A6-H6: represents report headers (manually entered).
Cells A7-G7: represents the range created in Excel for these cells (GEXDTargetRange).

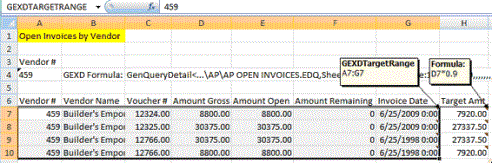

Cell H7: identifies the fill down column formula (D7*.09), which will automatically be filled down based on the rows in the range when the GEXD is generated. This column must be directly to the right of the range.

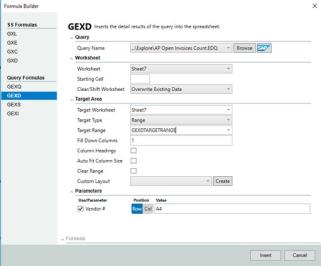

Query Name: click the Browse button to select the query (AP Open Invoices Count.EDQ).
Target Worksheet: click the drop-down list to select the worksheet for the output (Sheet7).
Target Type: indicates the format of the output (Range).
Target Range: indicates the name of the range for the output data (GEXDTargetRange).
Fill Down Column: indicates the number of fill down columns at the end of the output data (1).
Column Headings: indicates whether the GEXD formula output data retrieves headings from the query (not selected in this example, as the headings have previously been typed in the worksheet).
Clear Range: indicates whether to clear the range of output data, prior to executing the GEXD formula.
Vendor #: indicates the cell in the worksheet where the query parameter resides (A4).
